Week-5

1-建立一個20X20的方形(快捷鍵R)，分別擠出長500的桌框及200的桌腳(Shift+x)，個別另存新檔，成為個別的零件.

2-將桌框及桌腳利用方位變換(快捷鍵x)及結點接合(快捷鍵o)，組起桌架.

3-在建立一個540X540的方形(快捷鍵R)，分別擠出寬12的桌面(Shift+x)另存新檔.

4-將桌面跟桌架合併.(快捷鍵x)及(快捷鍵o)

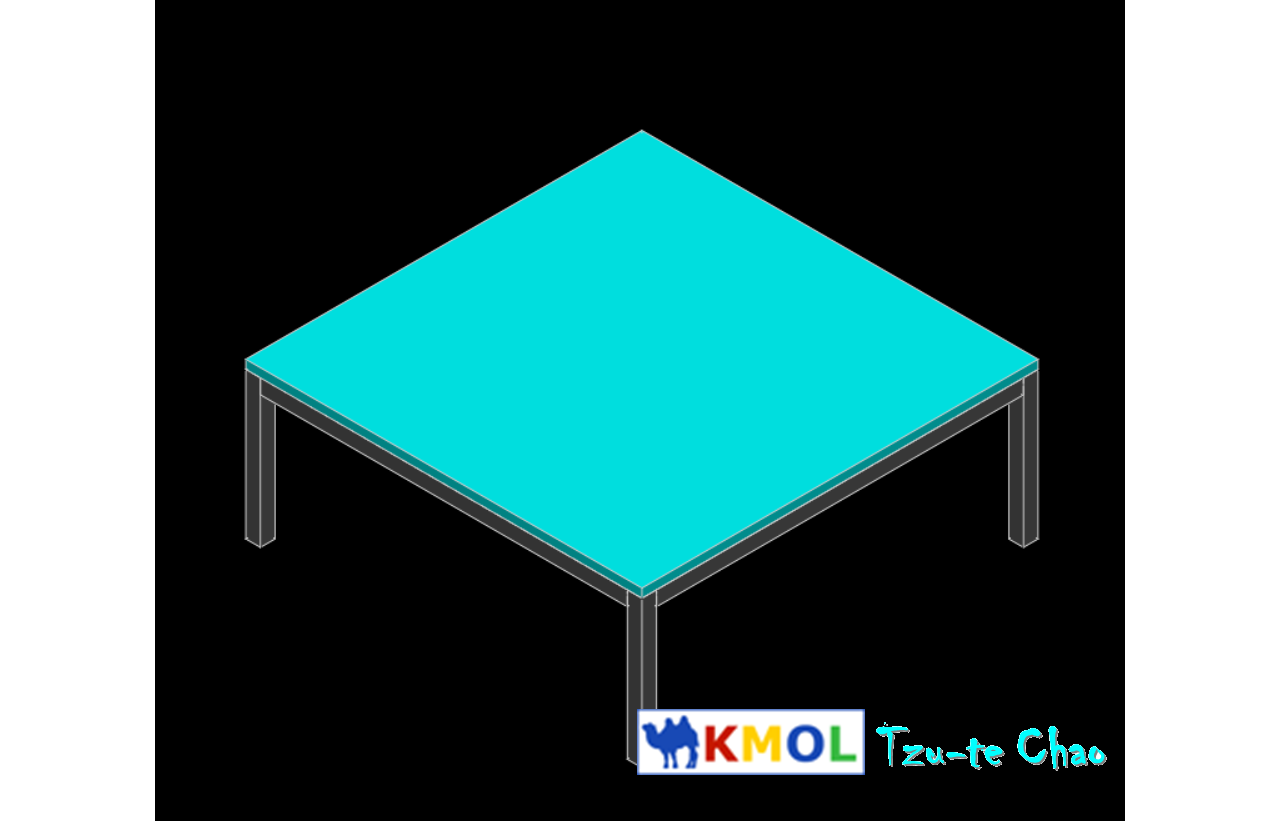

完成圖:

操作影片:

使用快捷鍵:

Sketch:

rectangle-R

Constrain:

lengh -D

equal length/radius/angle-Q

point on line/curve/plane/point-O

normals in same direction-X

New group:

extrude -Shift+X

linking/assembling file-Shift+I

Perspective:

nearest isometric view -F3

align view to workplane-W

操作影片:

2.閱讀手冊熟悉solvespace reference

3.將自評及互評填寫完畢課程評量表單
